The Future of 3D Printing is Here

Revolutionary Multi-Extruder System with Inclined Convergent Architecture

🔬 Research Phase ⚡ 4× Faster 🚀 Patent Pending
Support This Project Learn More

Revolutionizing Additive Manufacturing

A breakthrough in 3D printing technology that eliminates traditional speed limitations

🎯

The Problem

Traditional 3D printers are fundamentally limited by single-extruder sequential operation, making large prints time-prohibitive and multi-material applications complex.

💡

Our Solution

FraustroPrint Fusion 4X uses four inclined extruders working cooperatively and simultaneously. The geometric arrangement prevents collisions by design, not software compensation.

🚀

The Impact

Up to 4× faster printing speeds, improved surface finish through multi-angle deposition, and unprecedented flexibility in material combinations.

How It Works

Watch our detailed explanation of the inclined convergent architecture

Breakthrough Technology

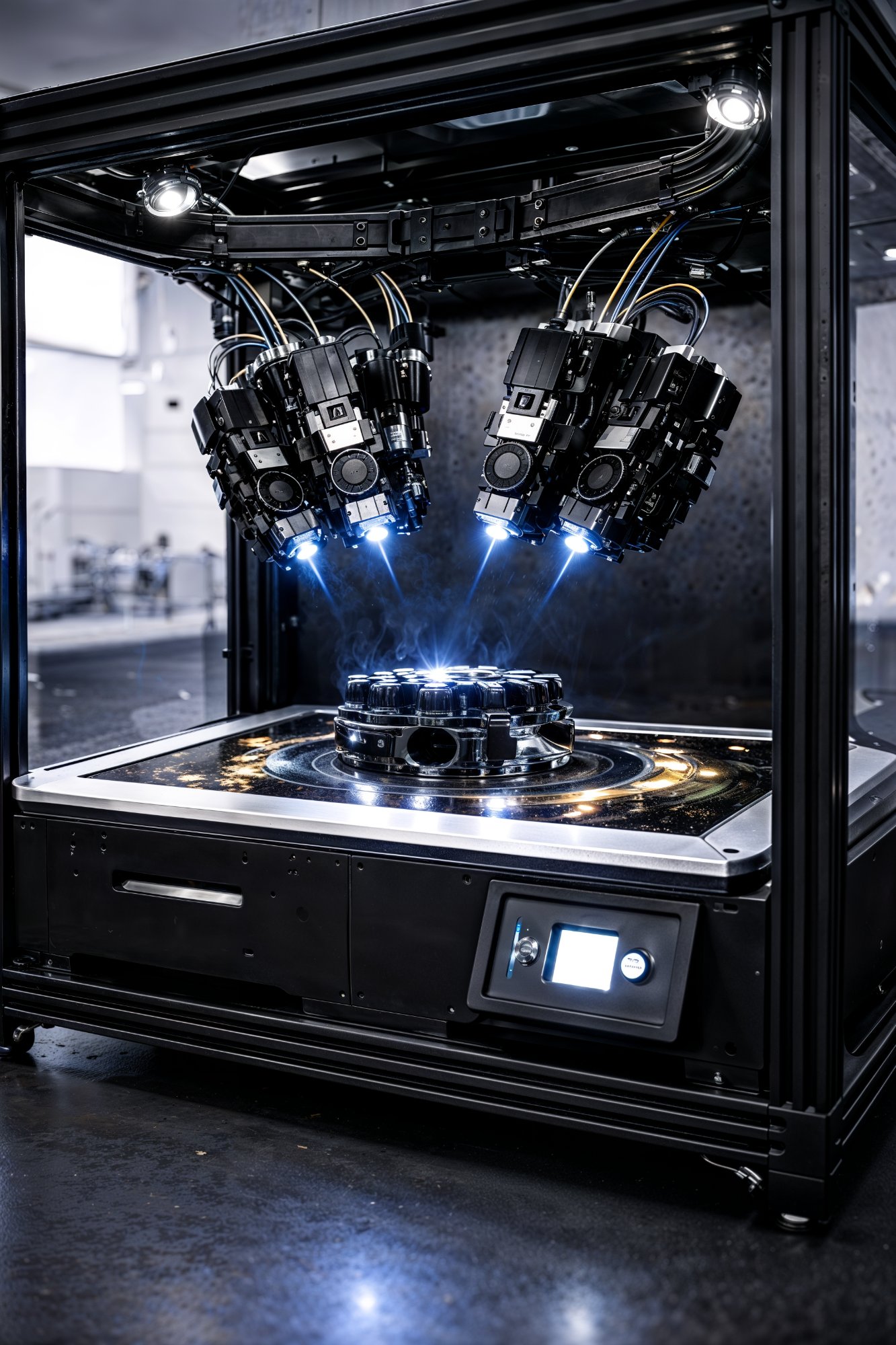

Inclined Architecture

Inclined Convergent Architecture

Four extruders positioned at 30° angles converge toward a central print zone. This geometric design creates collision-free zones without complex real-time calculations.

  • ✓ No physical collisions
  • ✓ Simultaneous operation
  • ✓ Scalable to larger matrices

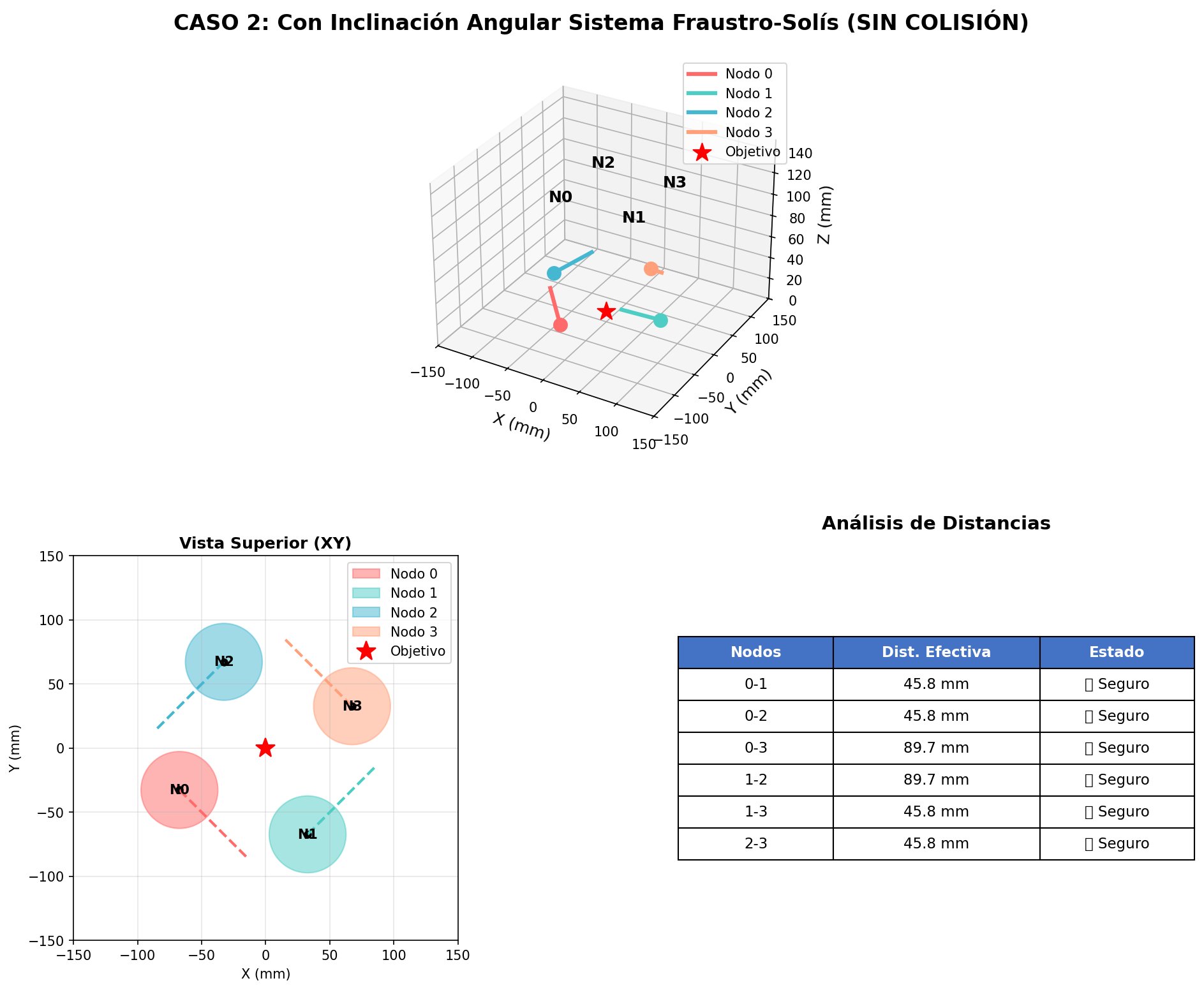

Simulation Results

Mathematically Validated

Geometric simulations confirm zero collisions with the inclined system. Distance between extruder bodies increases from 40mm to 45.8mm when tilted, while nozzles converge to the same print point.

45.8mm Min Distance
0 Collisions
±30° Max Tilt

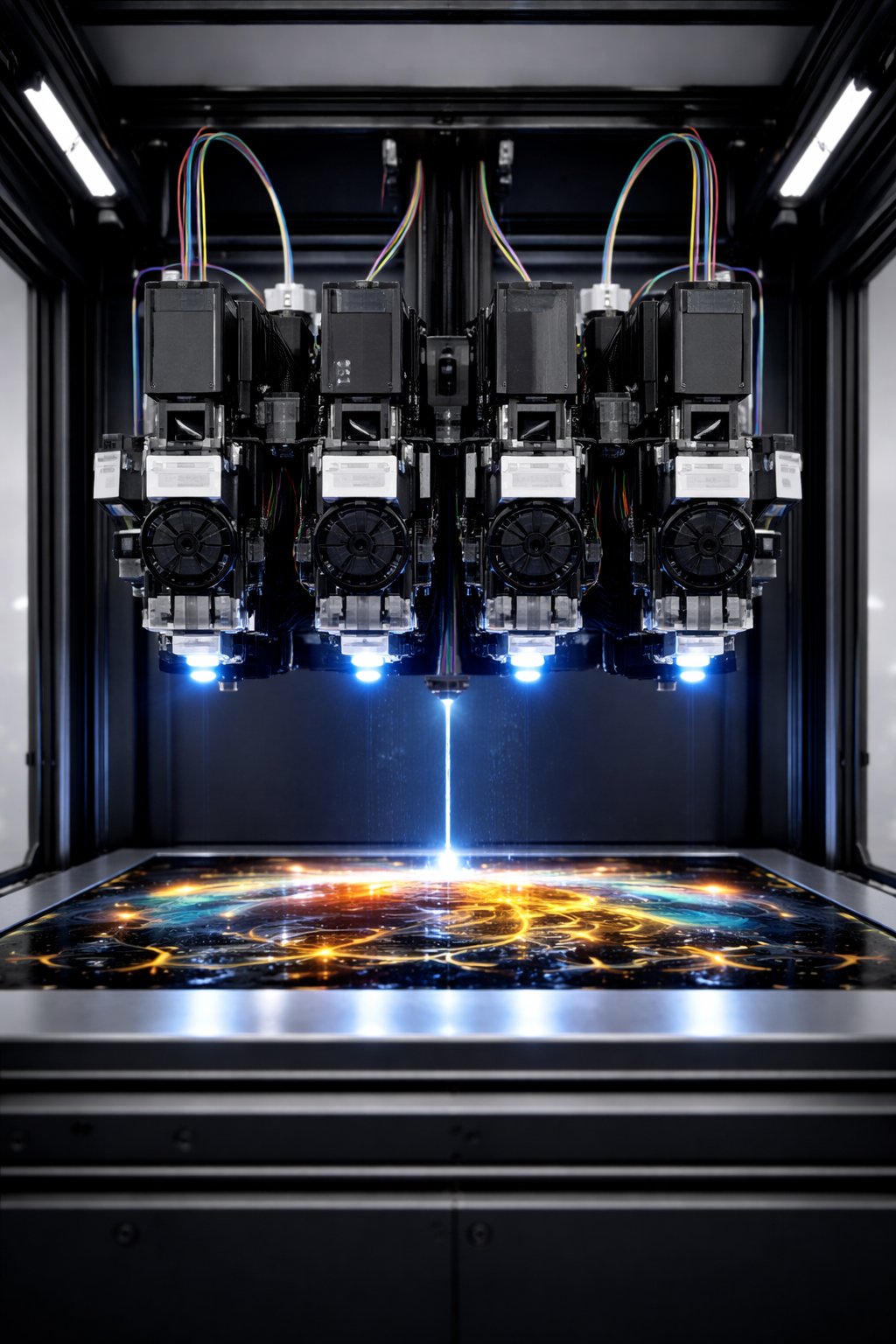

Advanced Control

Intelligent Motion Control

NVIDIA Jetson Orin Nano orchestrates all four extruders with precision positioning, coordinated thermal management, and predictive collision avoidance algorithms.

  • ✓ Real-time path planning
  • ✓ Staggered retraction sequences
  • ✓ Adaptive thermal zones

Technical Specifications

2×2 Prototype Configuration

Print System

  • Extruders: 4 (2×2 matrix)
  • Inclination: ±30°
  • Print Volume: 200×200×300mm
  • Layer Height: 0.1-0.4mm
  • Nozzle Diameter: 0.4mm (0.2-1.0mm)

Materials

  • ✓ PLA
  • ✓ ABS
  • ✓ PETG
  • ✓ Nylon
  • ✓ TPU
  • ✓ PEEK (450°C)

Control System

  • Processor: NVIDIA Jetson Orin Nano 8GB
  • Controllers: BigTreeTech Octopus Pro
  • Motors: NEMA 17 Closed-Loop
  • Sensors: LJ12A3 Proximity

Performance

  • Speed Increase: Up to 4×
  • Accuracy: ±0.05mm
  • Max Temp: 450°C
  • Power: 2× 2400W PSU

Support This Research

Help us bring this revolutionary technology from concept to reality

🔬 Research Phase

FraustroPrint Fusion 4X is currently in active research and development. Your support will help us:

  • ✓ Build the first functional prototype
  • ✓ Develop control software and algorithms
  • ✓ Conduct materials testing
  • ✓ Secure intellectual property protection
  • ✓ Advance toward production readiness

Initial Funding Goal

$105,000 USD
Prototype $25,000
Software $30,000
IP Protection $15,000
Testing $15,000
Operations $20,000

Support Tiers

Supporter

$25+

Every revolution starts with dreamers

In 1983, Chuck Hull invented stereolithography with a vision. In 2026, we're taking the next giant leap. Your belief in this vision matters.

  • ✓ Personalized thank you from Eng. Fraustro Solís
  • ✓ Biweekly progress blog access
  • ✓ Digital art print of the system
  • ✓ "I Supported FraustroPrint" digital badge
Support at $25
MOST IMPACT

Pioneer

$100+

Pioneers don't wait for permission

You're not just supporting a printer—you're supporting a new way of thinking about additive manufacturing. Inclined convergent architecture exists because someone dared to question "why not?"

  • ✓ Everything in Supporter tier
  • ✓ Limited edition numbered t-shirt
  • ✓ Private community forum access
  • ✓ Monthly livestream Q&A sessions
  • ✓ Photo of your name on prototype
  • ✓ First access to beta testing program
Support at $100
EXCLUSIVE

Innovator

$500+

Visionaries build the future

When people said "multiple extruders will collide," we did the math and proved them wrong. When they said "it's too complex," we engineered elegant solutions. You're funding the impossible.

  • ✓ Everything in Pioneer tier
  • ✓ 1-hour video consultation with inventor
  • ✓ Physical prototype component (retired/backup)
  • ✓ Hardbound technical journal of development
  • ✓ Permanent recognition on project website
  • ✓ 40% discount on first production run
  • ✓ Invitation to prototype unveiling event
Support at $500

Every contribution, no matter the size, brings us closer to revolutionizing 3D printing. Thank you for believing in this vision.

The Inventor

Ing. Santos Antonio Fraustro Solís

Civil Engineer | Innovation Researcher

Professional License: 4359351

Saltillo, Coahuila, México

Engineer Fraustro Solís brings a unique interdisciplinary approach to advanced manufacturing, combining formal engineering training with expertise in AI architecture, cybersecurity, and additive manufacturing innovation.
